Cabins over 30m² in size or with plumbing (any size) require Building Consent.
Simply choose a Style and Plan closest to your requirements.
Then personalize to suit your site and living requirements from the wide range of further options.
We will then provide a custom quotation for our various plan options.
Note: If a Kitchen is required, the cabin becomes a dwelling with added design requirements. - see SmartPLANZ for Bach designs.
Styles - there are eight Standard Styles

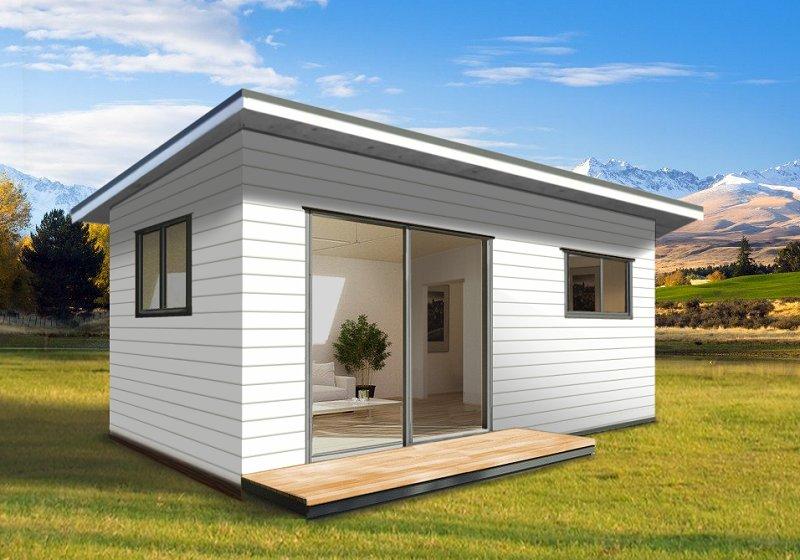

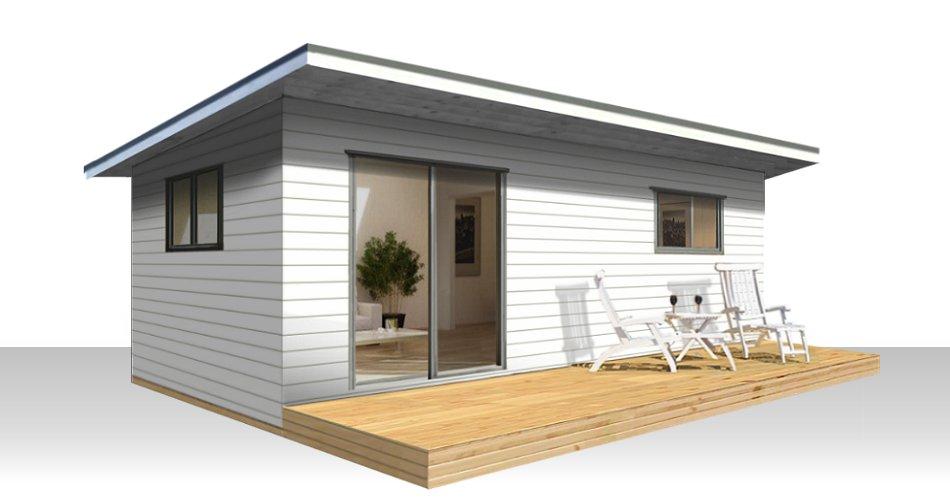

PENT Traditional
shown with Weatherboard Cladding
PENT Zen
shown with Plywood Cladding

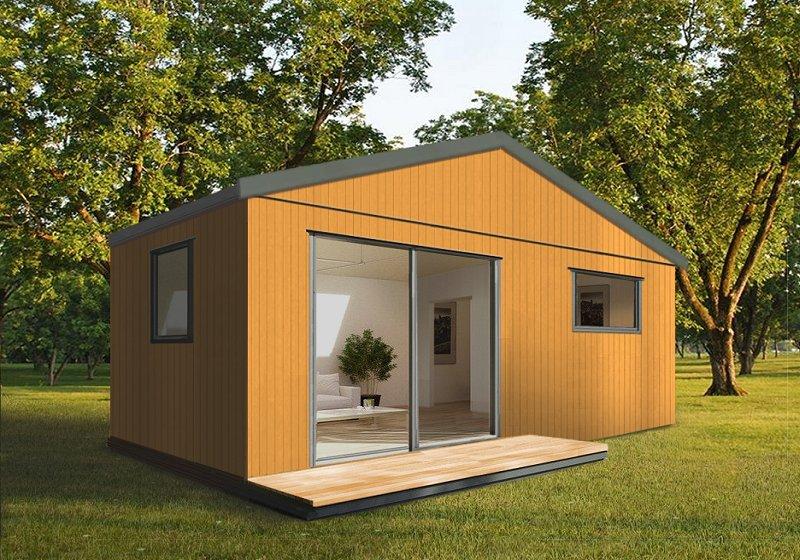

GABLE Traditional
shown with Plywood Cladding
GABLE Zen
shown with Iron Cladding
NOVA Traditional
shown with Iron Cladding
NOVA Zen
shown with Ply and Batton Cladding
CHALET Traditional
shown with Weatherboard Cladding
CHALET Zen
shown with Plywood Cladding
Images show the eight standard styles.
Each can be had with concrete pad or timber pile foundations.
Standard roofs are colorsteel and there are a range of cladding options.
Standard Floor Plans

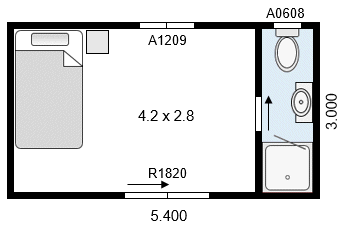

C16a
- 16m² 5.4 m x 3.0m

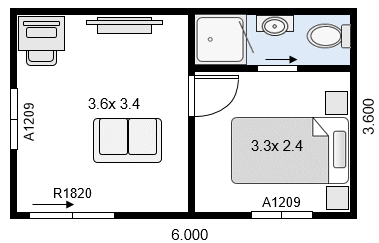

C20a - 20m² 6.0 m x
3.6m

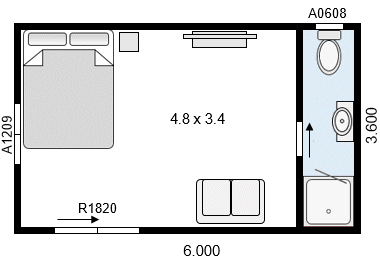

C20b - 20m² 6.0m x 3.6m

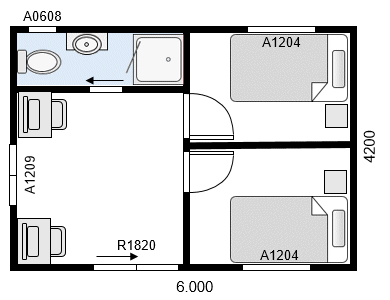

C25a - 25m²
6.0m x 4.2m

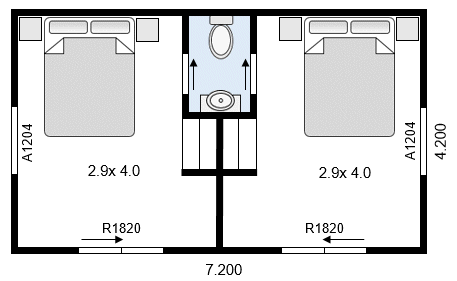

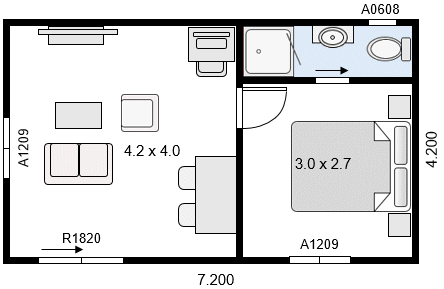

C30a - 30m² 7.2m x 4.2m
C30b
- 30m² 7.2 m x 4.2m

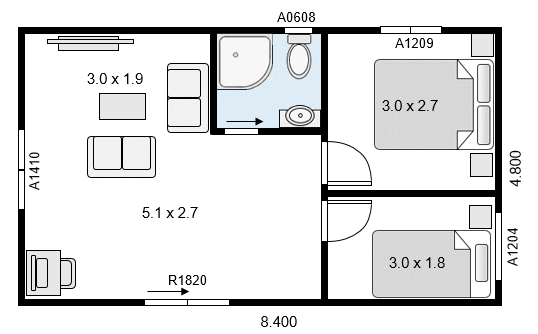

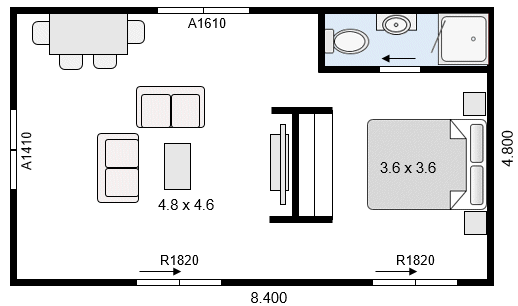

C40a - 40m² 8.4m x 4.8m
C40b
- 40m² 8.4m x 4.8m

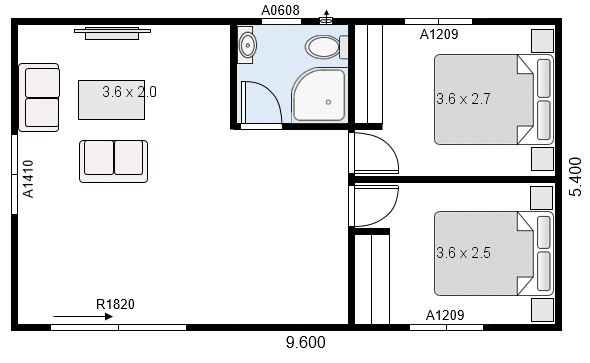

C50a - 50m² 9.6m x 5.4m
These Base Floor Plans can be built as they are or personalised to clients' requirements.
Personalised options include:
a) Choosing Foundation type
b) Selecting Cladding
c) Changing door and window sizes or positions
d) Changing or adding interior walls
e) Changing or adding services (Bathrooms, laundries)
f) Selecting interior lining and doors
Building Plan Options: BUILDING - these are suitable for experienced builders to build from, where building Consent isn't required. DIY BUILD - these are specially designed to show Owner-Builders component manufacturing details,
e.g. Foundations, Timber framing, Roofing, Cladding. DIY ASSEMBLY - Unique step-by-step 3D instructions for Owner-Build DIY assembly. MATERIAL SCHEDULES - full A4 page Material Schedules for ordering or getting Quotes. BUILDING CONSENT - Building Plans with Site specific drawings and Specifications for BC application.
